Full application solution for ED XRF analysis!


Gamma Analysis package, including:

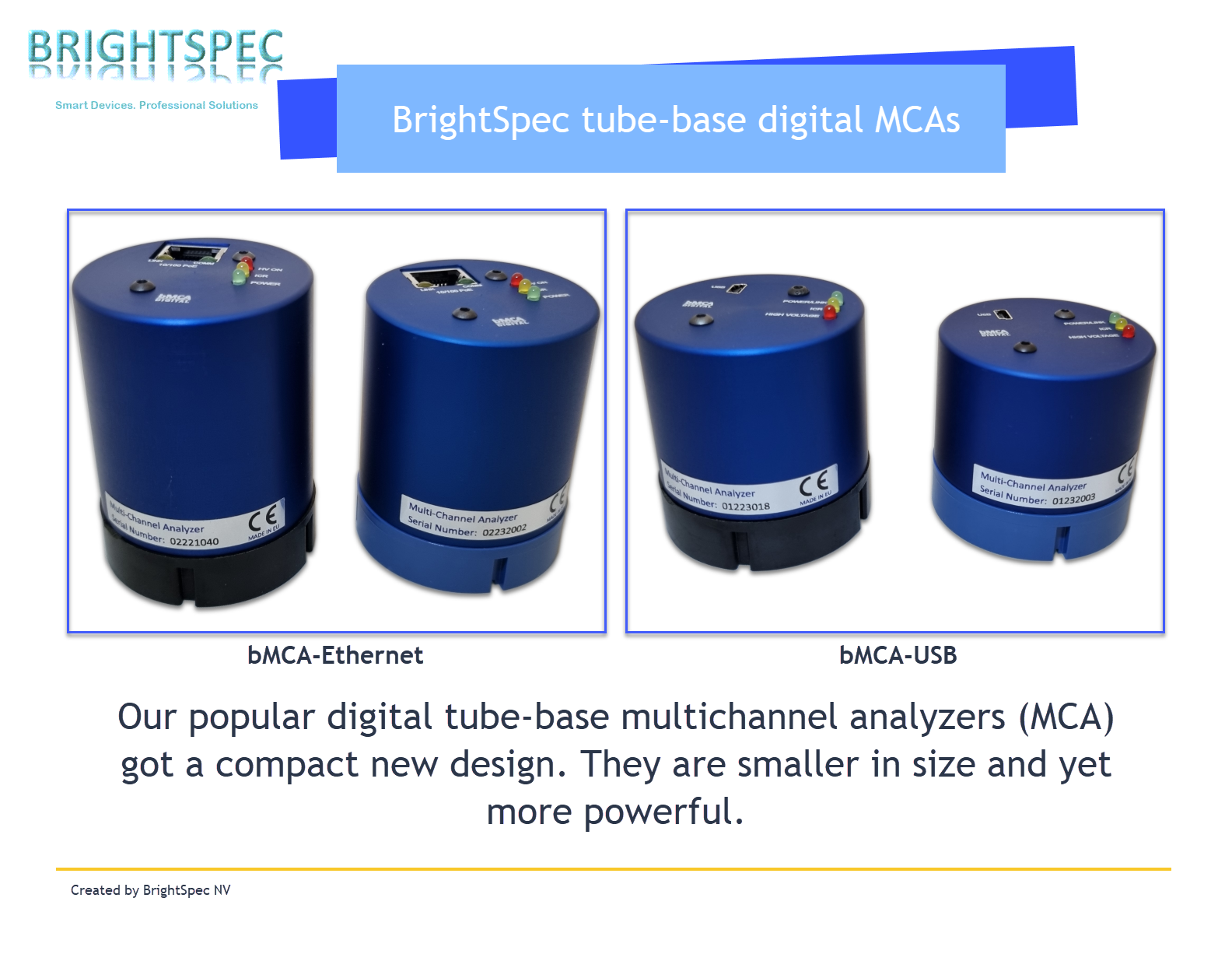

  • bMCA, compact, tube-base, DSP-based with up to 4K channels
  • USB or Ethernet
  • Embedded 0..1500V high-voltage supply for the detector
  • PHA and MCS modes of data acquisition
  • Powered via USB or Power-over-Ethernet
  • Programming libraries for easy interfacing:
    • 32 and 64-bit Linux, x86 and ARM
    • 32 and 64-bit MS Windows XP, Vista, 7, 8 and 10



    The perfect package for high-resolution X-ray spectrometry. Consisting of:

    • Silicon-Drift type (SDD)
    • In several active areas: 10, 40, 65, 100 and 175mm2
    • Exceptional peak-to-background ratio: > 15,000
    • Outstanding energy resolution:
      • better than 130eV for 20mm2 SDD
      • better than 140eV for large SDDs, such as 175mm2

    • Topaz-X, compact DSP-based with up to 16K channels


    Introduced Feb 2014, the Topaz-X is a compact, stand-alone digital Multi-Channel Analyzer (MCA) for Energy Dispersive X-Ray Fluorescence Analysis.

    The PCB board alone is available separately to OEM customers.

    Main features:
    • 50MHz, 14-bit precision flash ADC
    • 100MHz DSP on high-performance FPGA
    • Up to 4096 channels spectral memory of 32-bits depth
    • Two modes of acquisition: Pulse Height Analysis (PHA) and Multi-Channel Scaling (MCS)
    • Analog amplification factor from 1 to 256


    bAxil is a complete, full-featured and comprehensive spectrum analysis software for X-ray spectrometry. bAxil also includes elemental quantitative analysis. Using bAxil software, any energy-dispersive X-ray spectrum can be analyzed independently of its excitation and detection technology.

    bAxil development incorporates many years of experience in the X-ray spectrometry, in addition to the most recent advances in this field. bAxil features are, among others:
    • Two types of peak shapes: Gaussian and Voight-profile.
